Home\Product\Ring Light\HT-RL180-A00
HT-RL180-A00
Updating...
Updating...
Key Feature
1. Simple structure, compact, easy to install
2. Various angles, flexible size
3. High quality LED, stable light emission and high brightness
Available Model
White: HT-RL180-A00-W
Red: HT-RL180-A00-R
Blue: HT-RL180-A00-B
Green: HT-RL180-A00-G
IR850: HT-RL180-A00-IR850
IR940: HT-RL180-A00-IR940

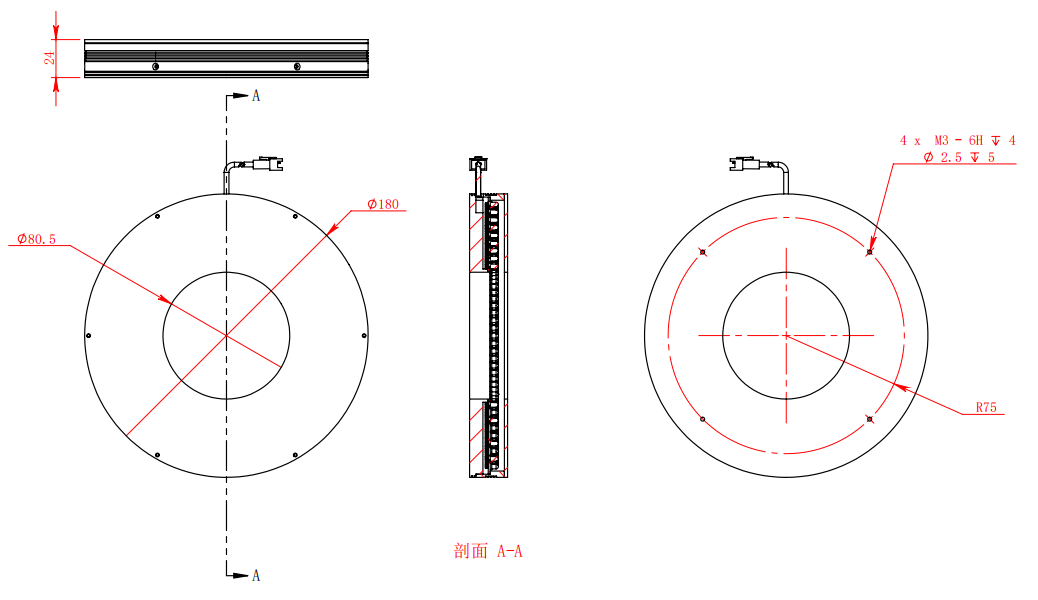

Dimension
General Information | ||
|---|---|---|
Camera Brand | HuaTeng Vision | |
Product Model | HT-RL180-A00-W/R/B/G/IR850/IR940 | |
Full Fange Of Products | Ring Light | |
Product Name | Industrial Leve Ring Light | |
Product Dynamics | Has Been Released For Mass Production. | |
Parameter Specification | ||
Available Colors | White | Red | Blue | Green | IR850 | IR940 | |
Color Temperature | White: 6500K Red: 625nm Blue: 465nm Green: 525nm IR850nm IR940nm | |
Irradiation Angle | 0° | |
Connector type | SMR-03V-B | |
Power Consumption | White HT-RL180-A00-W: 18W Red HT-RL180-A00-R: 16W Blue HT-RL180-A00-B: 18W Green HT-RL180-A00-G: 18W IR850nm HT-RL180-A00-IR850: 18W IR940nm HT-RL180-A00-IR940: 18W | |
LED Rows | 9 | |
Outer Dimensions | Φ180×24mm | |
Diameter | Φ180 | |
Bore Dimensions | Φ80.5mm | |
Operating Temperature | 0°C~50°C | |
使用说明书
华腾威视
Product Structure
Huateng Vision
