Home\Product\Ring Light\HT-RL120-A15

Function Overview\Product List

Functional characteristics

Key Feature

1. Simple structure, compact, easy to install

2. Various angles, flexible size

3. High quality LED, stable light emission and high brightness

Available Model

White: HT-RL120-A15-W

Red: HT-RL120-A15-R

Blue: HT-RL120-A15-B

Green: HT-RL120-A15-G

IR850: HT-RL120-A15-IR850

IR940: HT-RL120-A15-IR940

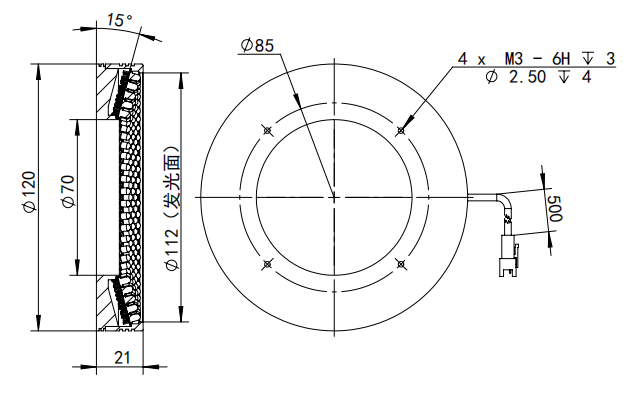

Dimension

General Information
	Camera Brand	HuaTeng Vision
	Product Model	HT-RL120-A15-W/R/B/G/IR850/IR940
	Full Fange Of Products	Ring Light
	Product Name	Industrial Leve Ring Light
	Product Dynamics	Has Been Released For Mass Production.
Parameter Specification
	Available Colors	White \| Red \| Blue \| Green \| IR850 \| IR940
	Color Temperature	White: 6500K Red: 625nm Blue: 465nm Green: 525nm IR850nm IR940nm
	Irradiation Angle	15°
	Connector type	SMR-03V-B
	Power Consumption	White HT-RL120-A15-W: 10.8W Red HT-RL120-A15-R: 10.2W Blue HT-RL120-A15-B: 10.8W Green HT-RL120-A15-G: 10.8W IR850nm HT-RL120-A15-IR850: 10.8W IR940nm HT-RL120-A15-IR940: 10.8W
	LED Rows	5
	Outer Dimensions	Φ120×21mm
	Diameter	Φ120
	Bore Dimensions	Φ70mm
	Operating Temperature	0°C~50°C

Product Structure Huateng Vision
