Functional characteristics
HT-SUA501GM-T1V-C-90 GigE camera
Model:HT-SUA501GM-T1V-C-90
Optical size: 2/3"
Sensor: CMOS
Pixel size: 3.45umx3.45um
Resolution: 2448*2048
Transmission interface: USB3.0 TYPE B
Home\Product\USB3.0 90° Camera\HT-SUA501GM-T1V-C-90

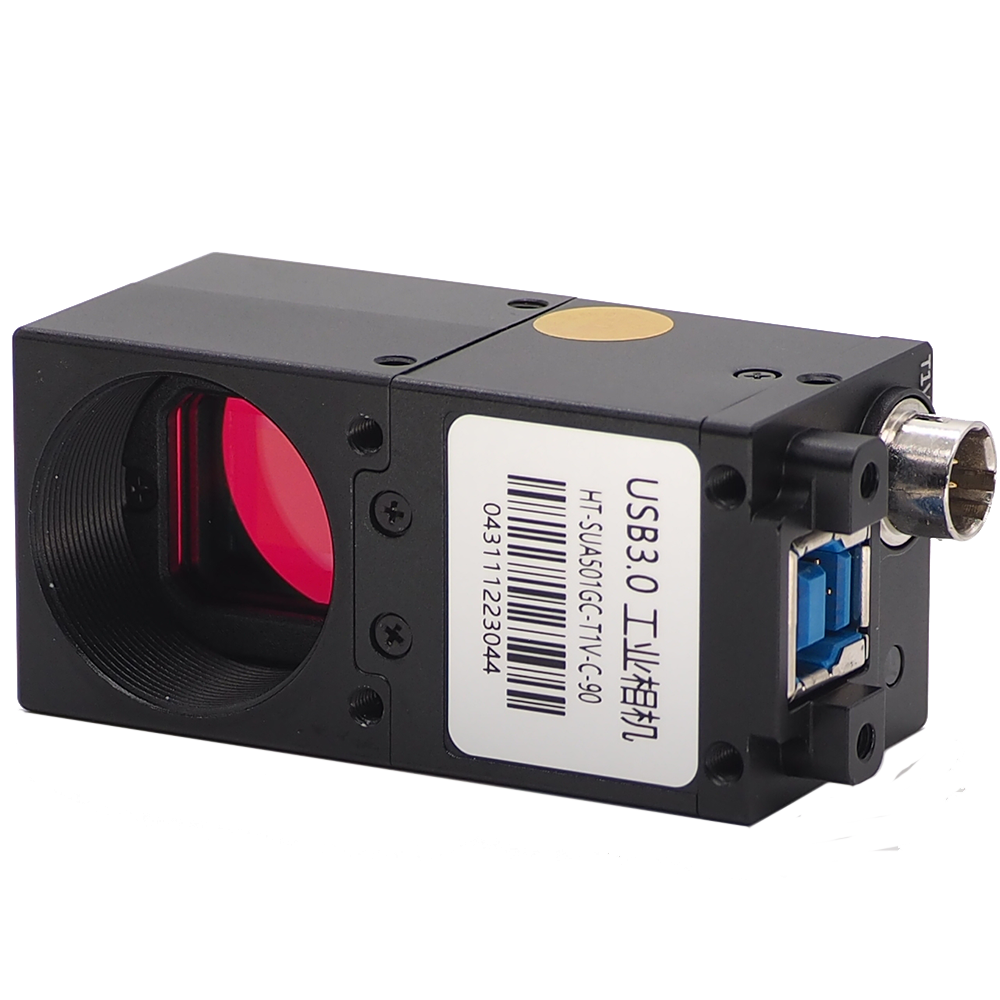

HT-SUA501GM-T1V-C-90
Updating...
Updating...
Key Feature
1. Adopts brand new design to reduce power consumption.
2. Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
3. Supports hardware trigger, software trigger, and free run.
4. Compact design with mounting holes on panels for flexible mounting from 4 sides.
5. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Available Model
HT-SUA501GM-T1V-C-90

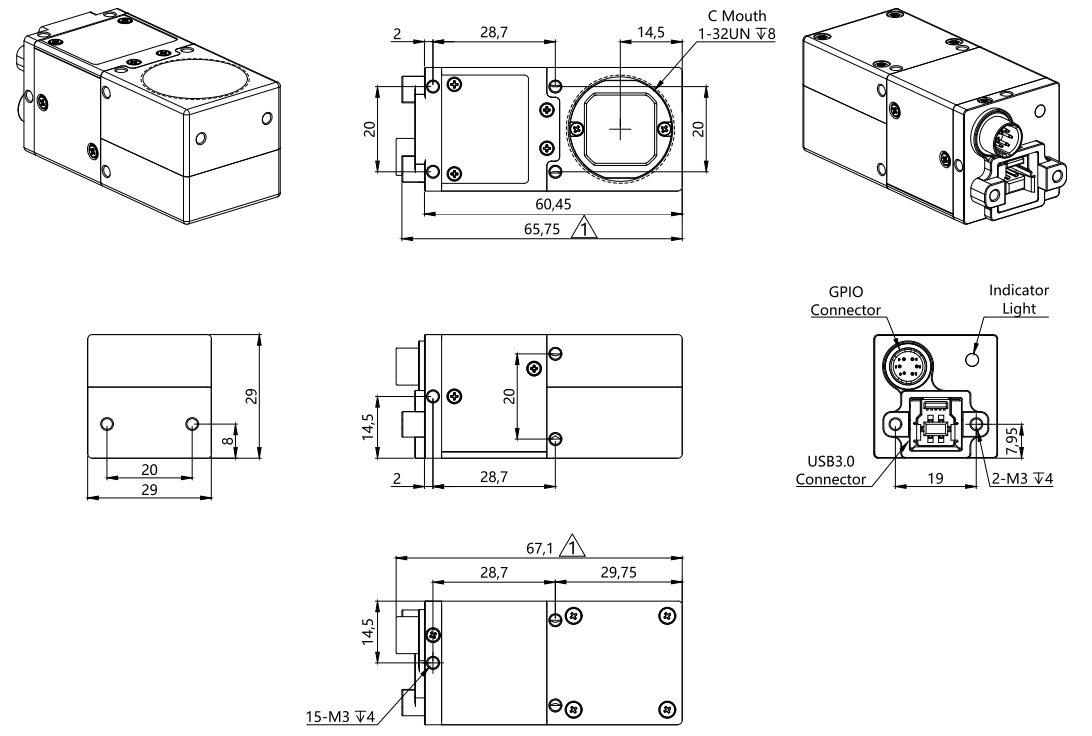

Dimension
General Information | ||
|---|---|---|
Camera Brand | HuaTeng Vision | |
Product Model | HT-SUA501GM-T1V-C-90 | |
Full Fange Of Products | Area Scan Camera | |
Product Name | 5MP USB3.0 Camera, Global Shutter, Mono | |
Product Dynamics | Has Been Released For Mass Production. | |
Sensor Information | ||
Sensor Supplier | /// | |
Sensor | IMX264 | |
Shutter Type | Global Shutter | |
Sensor Size | 2/3'' | |
Pixel | 5MP | |
Sensor Type | CMOS | |
Resolution(H x V) | 2448 px × 2048 px | |
Pixel Size | 3.45μm × 3.45 μm | |
Mono/Color | Mono | |
Sensitivity | 1146mV 1/30s | |
Camera Data | ||
Filter | 650nm IR cut | |
Dynamic range | 73.6 dB | |
SNR | 40.4 dB | |
Frame Rate | 40.5 fps | |
Gain(dB) | 250 | |
Exposure Time(ms) | 0.0118~12377.1 ms | |
Data Iinterface | USB3.0 Tpye-B | |
Bit Depth | Bayer RG 8bit/Bayer 12bit | |
Synchronization | Via free run Via software trigger Via hardware trigger | |
Exposure Control | Programmable via the camera API Via hardware trigger | |
I/O Connector | 6-pin Hirose | |
GPIO Digital Input | 1 | |
GPIO Digital Output | 1 | |
General I/O | 1 | |
Power Supply | 12 VDC, Supports USB3.0 power supply | |
Power Requirements | Typ. 3 W@5 VDC | |
Support System | Windows/Linux/Android and Mac 32/64bits | |
Vision Standard | GigE vision v1.2、GenlCam | |
Programming Language | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java | |
Function | Binning, Decimation, ROI,Gamma, Black level, LUT, Defective pixel correction | |
Design Structure | ||
Design | Exterior Dimensions | |
Housing Dimensions | 29 mm x 29 mm x 60.45 mm | |
Lens Mount | C-Mount | |
Operating Temperature | -20 - 50°C | |
Weight (Typical) | 75 g | |
IP Rating | IP40 | |
Standard | ||
Standard |
| |
1. Color-model’s fps are calculated using BayerRG8 pixel format 2. Measured with 5V USB power supply 3. Case temperature, measured on the front part of the camera body 4. Ambient temperature | ||
