HT-AS5050
Updating...
Updating...
Key Feature
1. High density array LED, provides uniform lighting.
2. Provide side mounting lugs, flexible installation mode.
Available Model
White: HT-AS5050-W
Red: HT-AS5050-R
Blue: HT-AS5050-B
Green: HT-AS5050-G
IR850: HT-AS5050-IR850
IR940: HT-AS5050-IR940

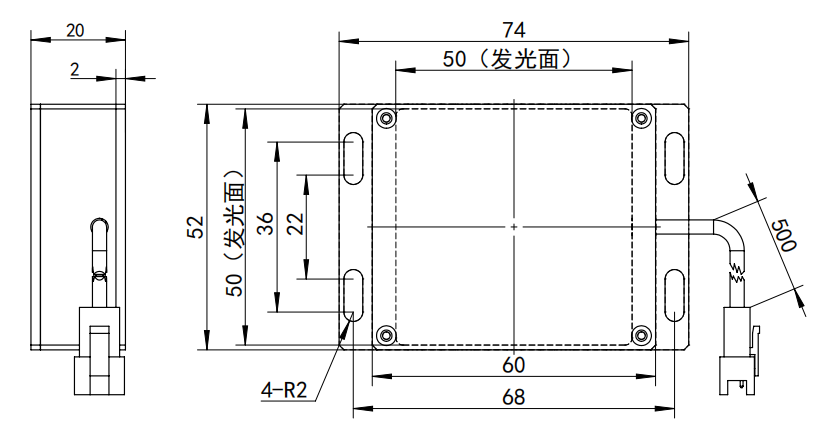

Dimension
General Information | ||
|---|---|---|
Camera Brand | HuaTeng Vision | |
Product Model | HT-AS5050-W/R/B/G/IR850/IR940 | |
Full Fange Of Products | Back Light | |
Product Name | Industrial Leve Back Light | |
Product Dynamics | Has Been Released For Mass Production. | |
Parameter Specification | ||
Available Colors | White | Red | Blue | Green | IR850 | IR940 | |
Color Temperature | White: 6500K Red: 625nm Blue: 465nm Green: 525nm IR850nm IR940nm | |
Connector type | SMR-03V-B | |
Power Consumption | White HT-AS5050-W: 2.7W Red HT-AS5050-R: 2.1W Blue HT-AS5050-B: 2.7W Green HT-AS5050-G: 2.7W IR850nm HT-AS5050-IR850: 2.7W IR940nm HT-AS5050-IR940: 2.7W | |
Outer Dimensions | 74mm × 52mm x 20mm | |
Emitting Area Dimensions | 50mm × 50mm | |
Operating Temperature | 0°C~50°C | |
使用说明书
华腾威视
Product Structure
Huateng Vision
