HT-PX6500GM-T
Updating...
Updating...
Key Feature
1. Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc.
2. Supports hardware trigger, software trigger and free run, etc.
3. CoaXPress interface, high frame rate.
4. Compatible with CoaXPress V2.1 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Available Model
HT-PX6500GM-T-M58

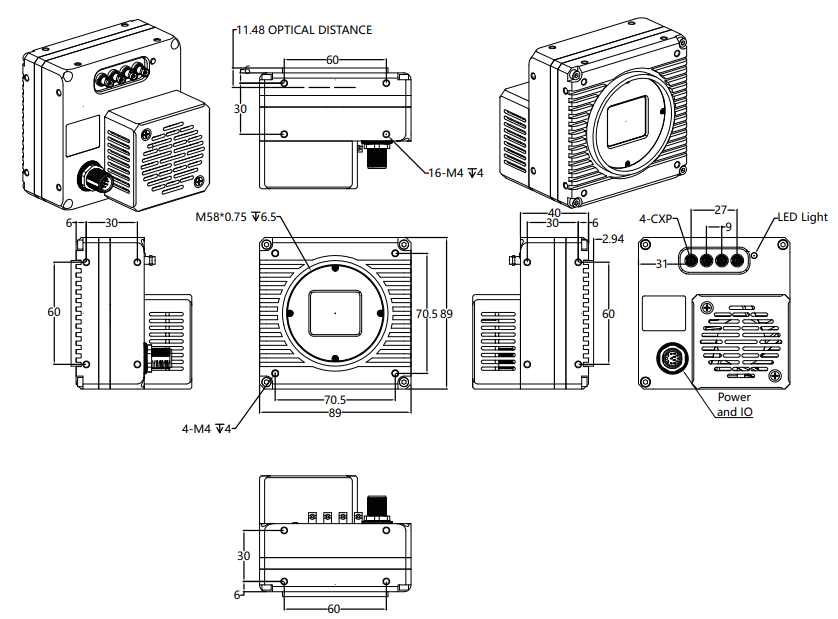

Dimension
General Information | ||
|---|---|---|
Camera Brand | HuaTeng Vision | |
Product Model | HT-PX6500GM-T-M58 | |
Full Fange Of Products | Area Scan Camera | |
Product Name | 65.0MP CoaXPress Area Scan Camera, Mono | |
Product Dynamics | Has Been Released For Mass Production. | |
Sensor Information | ||
Sensor Supplier | Gpixel | |
Sensor | GMAX3265 | |
Shutter Type | Global Shutter | |
Sensor Size | 29.9 x 22.4mm | |
Pixel | 65.0MP | |
Sensor Type | CMOS | |
Resolution(H x V) | 9344 x 7000 px | |
Pixel Size | 3.2 µm x 3.2 µm | |
Mono/Color | Monochrome | |
Sensitivity | 1.03x10^7 e-/((W/m^2)·s) @500nm | |
Camera Data | ||
Filter | AR glass | |
Dynamic range | 66.0 dB | |
SNR | 40.0 dB | |
Frame Rate | 71 fps | |
Gain(dB) | 6 | |
Exposure Time(ms) | 0.015 ~ 10000 ms | |
Data Iinterface | CoaXPress | |
Bit Depth | 8 bits/12 bits | |
Synchronization | Via free run Via software trigger Via hardware trigger | |
Exposure Control | Programmable via the camera API Via hardware trigger | |
I/O Connector | 12-pin M12 | |
GPIO Digital Input | 1 | |
GPIO Digital Output | 1 | |
Differential input | 2 | |
Power Supply | 24 VDC | |
Power Requirements | Typ. 15 W@24 VDC | |
Support System | Windows/Linux/Android and Mac 32/64bits | |
Vision Standard | CoaXPress 2.1、GenlCam | |
Programming Language | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java | |
Function | Binning, Decimation, ROI,Gamma, Black level, LUT, Defective pixel correction | |
Design Structure | ||
Design | Exterior Dimensions | |
Housing Dimensions | 89 mm x 89 mm x 40 mm | |
Lens Mount | M58-Mount | |
Operating Temperature | 0 - 50°C | |
Weight (Typical) | 700 g | |
IP Rating | IP40 | |
Standard | ||
Standard |
| |
1. Color-model’s fps are calculated using BayerRG8 pixel format 2. Measured with 24V power supply 3. Case temperature, measured on the front part of the camera body 4. Ambient temperature | ||
