HT-GEM1201C-T
Updating...
Updating...
Key Feature
1. Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc.
2. Supports hardware trigger, software trigger and free run, etc.
3. Adopts GigE interface and max. transmission distance of 100 meters without relay.
4. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Available Model
Bare Board: HT-GEM1201C-T-B
C-Mount: HT-GEM1201C-T-CH20
M12-Mount: HT-GEM1201C-T-M12

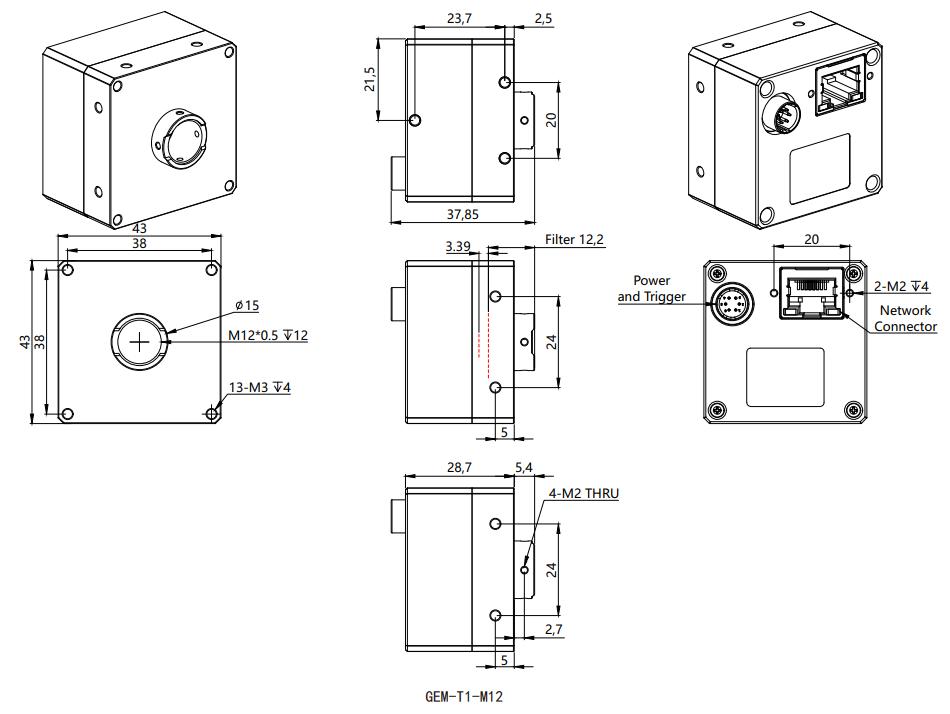

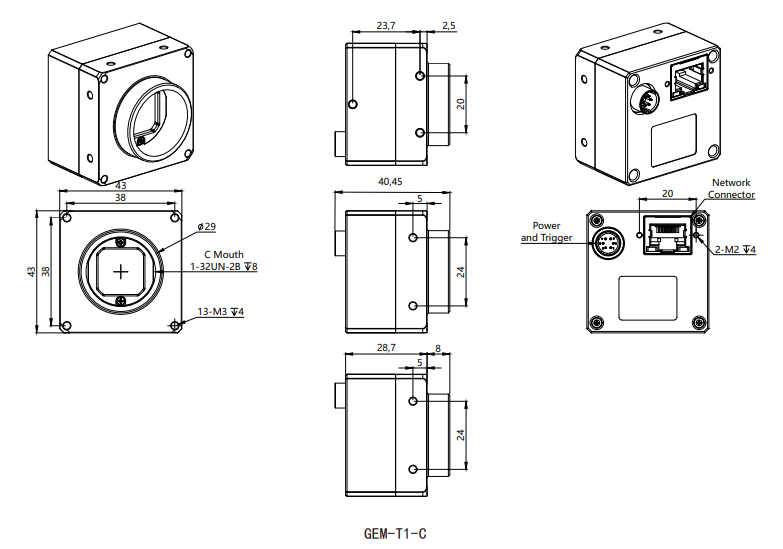

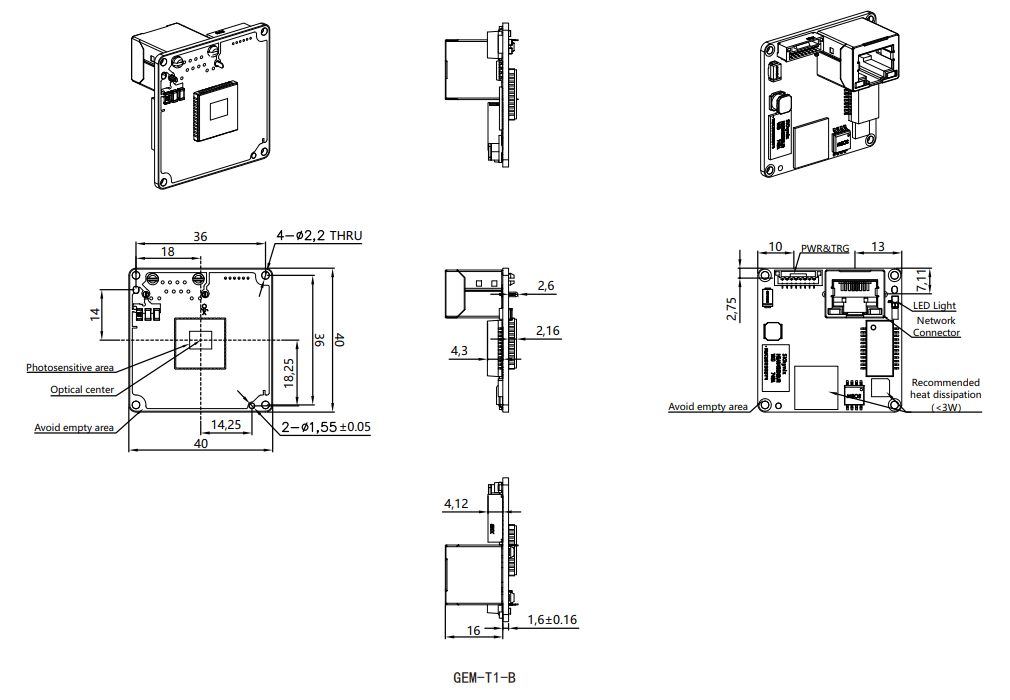

Dimension
General Information | ||
|---|---|---|
Camera Brand | HuaTeng Vision | |
Product Model | Bare Board: HT-GEM1201C-T-B C-Mount: HT-GEM1201C-T-CH20 M12-Mount: HT-GEM1201C-T-M12 | |
Full Fange Of Products | Area Scan Camera | |
Product Name | 12.0MP GigE Area Scan Camera, Color | |
Product Dynamics | Has Been Released For Mass Production. | |
Sensor Information | ||
Sensor Supplier | Sony | |
Sensor | IMX226 | |
Shutter Type | Rolling Shutter | |
Sensor Size | 1/1.7'' | |
Pixel | 12.0MP | |
Sensor Type | CMOS | |
Resolution(H x V) | 4000 px × 3000 px | |
Pixel Size | 1.85 μm × 1.85 μm | |
Mono/Color | Color | |
Sensitivity | 1119m V@1/30s | |
Camera Data | ||
Filter | 650nm IR cut | |
Dynamic range | 66 dB | |
SNR | 40 dB | |
Frame Rate | 9.75 fps | |
Gain(dB) | 22 | |
Exposure Time(ms) | 0.031 to 4063. ms | |
Data Iinterface | GigE RJ45 | |
Bit Depth | 8 bit | |
Synchronization | Via free run Via software trigger Via hardware trigger | |
Exposure Control | Programmable via the camera API Via hardware trigger | |
I/O Connector | 6-pin Hirose | |
GPIO Digital Input | 1 | |
GPIO Digital Output | 1 | |
General I/O | 1 | |
Power Supply | 12 to 24 VDC (POE is optional) | |
Power Requirements | Typ. 2.4 W@12 VDC | |
Support System | Windows/Linux/Android and Mac 32/64bits | |
Vision Standard | GigE vision v1.2、GenlCam | |
Programming Language | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java | |
Function | Binning, Decimation, ROI,Gamma, Black level, LUT, Defective pixel correction | |
Design Structure | ||
Design | Exterior Dimensions | |
Housing Dimensions | Bare Board: 40 x 40 x 17.6mm C-Mount: 43 x 43 x 28.7mm M12-Mount: 43 x 43 x 28.7mm | |
Lens Mount | C/M12-Mount | |
Operating Temperature | 0 - 50°C | |
Weight (Typical) | 75 g | |
IP Rating | IP40 | |
Standard | ||
Standard |
| |
1. Color-model’s fps are calculated using BayerRG8 pixel format 2. Measured with 12V power supply 3. Case temperature, measured on the front part of the camera body 4. Ambient temperature | ||
